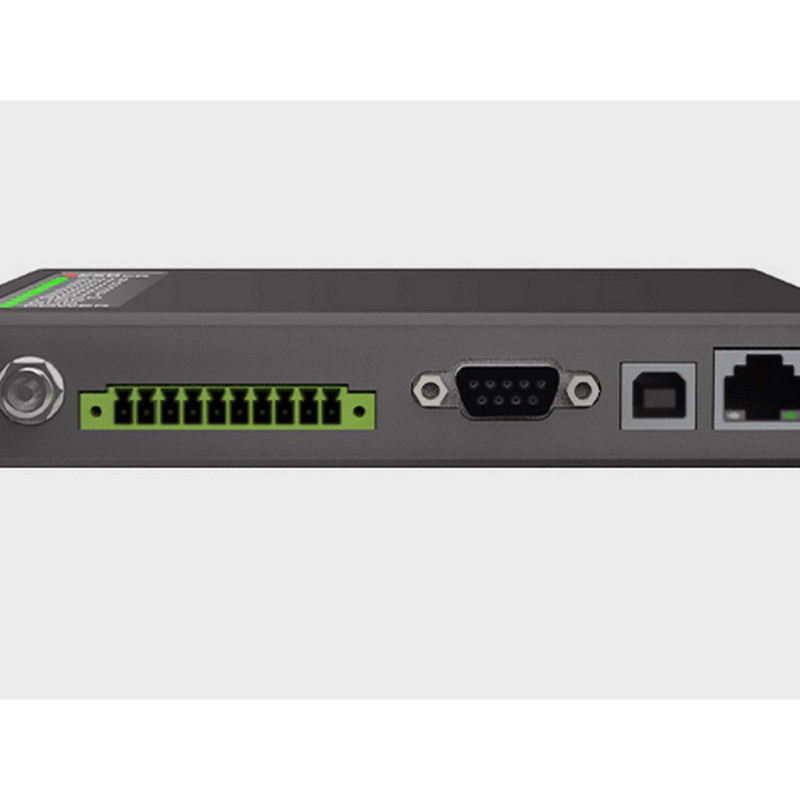

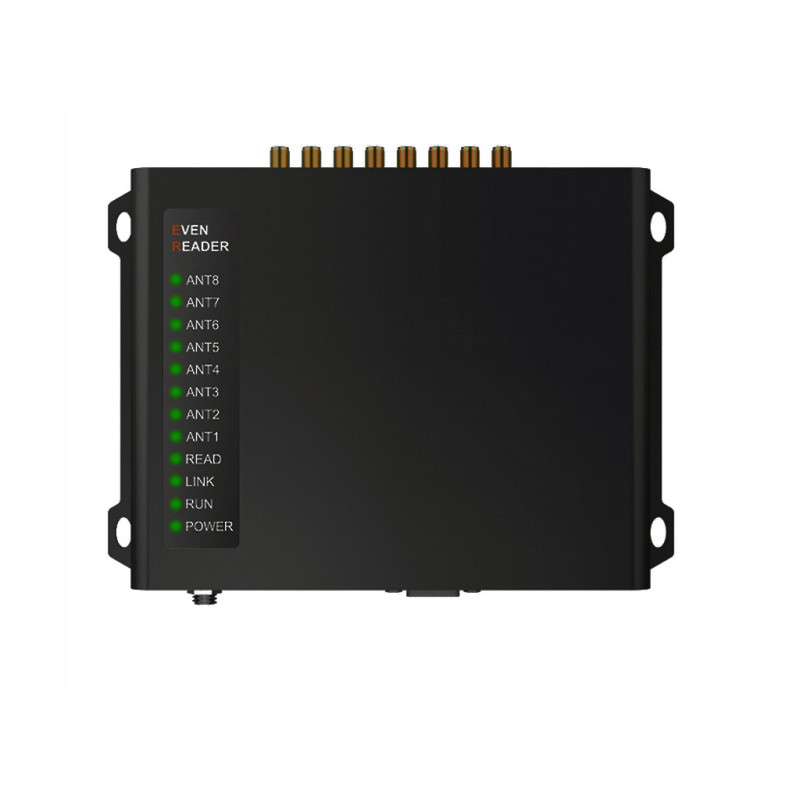

T2S- C811 8 Kanal Reader

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

RFID technical parameters
Frequency	902~928MHz (US）865~868MHz （EU）
Protocol	ISO18000-6C (EPC GEN2)
RF output power	0dbm—33dbm(adjustable)
Reading speed	200pcs/s
Data cache	600pcs @ 128bits EPC
Reading distance	0—15M
Anti-collision	Quick polling and inventory of multiple antenna ports
Operating mode	Active mode
Operating mode	Answer mode
RSSI	support
Physical parameters
Material	die cast aluminum
size	14718426mm
net weight	0.6kg
Package Size	200255100mm
Package weight	1.3kg
Data communication
Standard interface	USB、RS232、RS485、TCP/IP
Optional interface	POE (Mode A/B af), WiFi
GPIO interface	2 sets of GPI & 2 sets of GPO
Antenna port	8 SMA female headers
power supply	12V 2A
Current consumption	0.5~1.2A
Development environment
SDK	Demo software, API, examples, user manual
SDK	Demo software, API, examples, user manual	Development language	C#, Delphi, java, Python, VB and other languages
Working environment
IP protection level	IP55
Operating temperature	-10-+60℃
Storage temperature	-20-+75℃
