RFID Parameters
Frequency	868-868MHz（EU）
Frequency	902~928MHz（US）
Gain	5.5dBi
Reading distance	0-6M（depending on the reader and tag)）

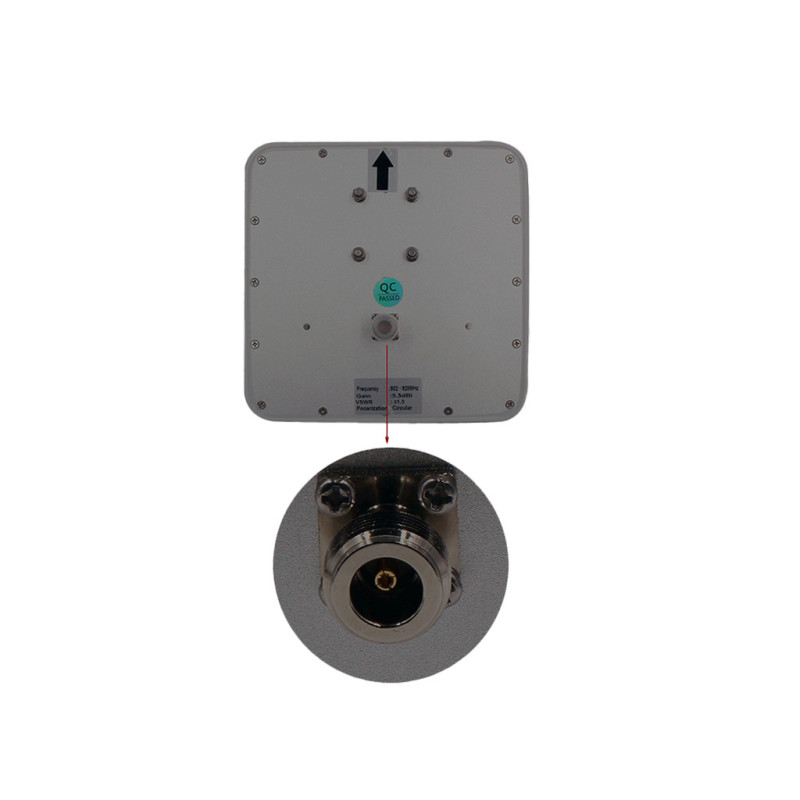

Back connector model	N-type female connector
Polarization mode	Circular polarization
Radiation angle	Horizontal: 70° Vertical: 65°
Environmental parameters
Protection level	IP67
Operating temperature	-40～70℃
Product List
Standard accessories	Antenna1, mounting bracket1, 3m feeder*1
Technical Parameters
Bandwidth	50W
Bandwidth	50W	Maximum power	100 km/h
Wind resistance	≧11
Front-to-back ratio F/B	≦1.4
Standing wave ratio	50 Ω
Impedance	DC grounding
Physical parameters
Reflector material	aluminum
Antenna cover material	ABS
Size	19019035mm
Weight	0.95Kg
